Aerospace
Interiors and Transparencies
Royalite® Fire Rated Sheet
The trusted solution for aircraft cabin interiors—for decades.

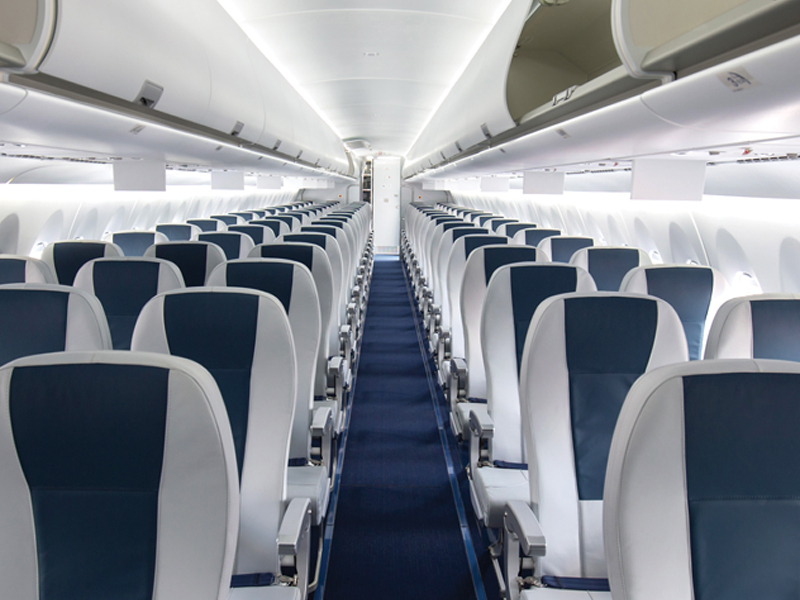

From seats, trays, bulkheads and window shades to lavatory parts, galley carts and flooring — Royalite® is as versatile as it is strong. Ideal for laminating, fabricating and machining everything from seat parts and bulkhead laminates to monitor shrouds, window shades and tray tables, Royalite® is the perfect material for most aircraft interior requirements. Royalite®’s high tensile strength and stiffness offer superior impact resistance, and it’s formulated to resist staining, fading, cracking and crazing caused by harsh cleansers.
Royalite® meets heat deflection temperature requirements and has excellent formability for uniform wall thicknesses. It’s available in 0.028" – 0.375" thicknesses and a variety of popular surface textures and designs. The available materials compliant with FAR 25.853(a), FAR 25.853(b) and FAR 25.853(d) aviation ratings are R52, R57, R60, R105, R503, R552, R557, and R755

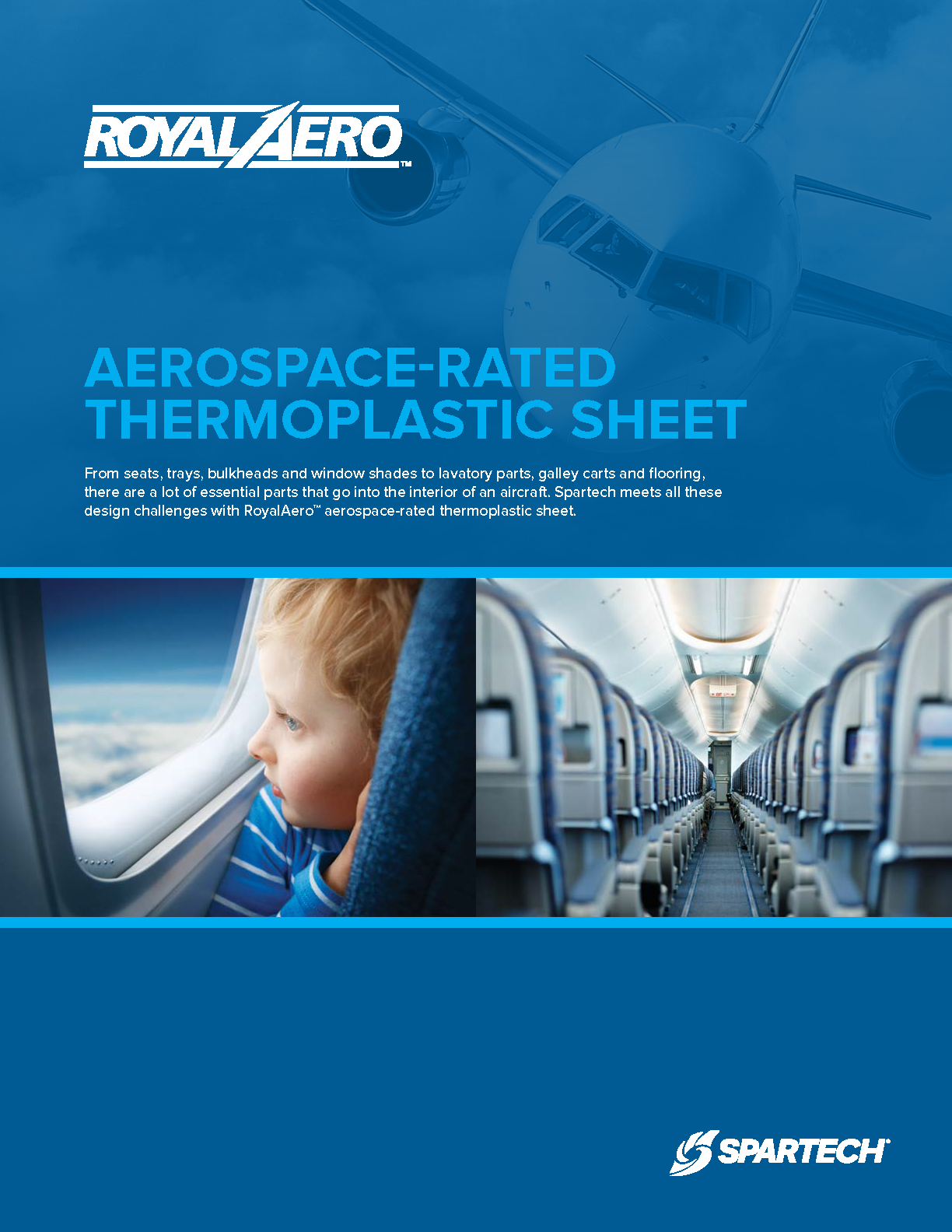

The RoyalAero™ product line offers aircraft manufacturers a complete range of FAA-compliant, aerospace-rated thermoplastic sheet products engineered to meet exact formability and ductility specifications. Materials include R12, R20, R52, R57, R503, R60, R105, R552, R557, and R755.
Excellence in Aerospace
We’ve manufactured the highest quality engineered materials for commercial airliners, military jets, and helicopters for over three decades. Our Royalite® and Polycast® product lines protect passengers’ and crew’s health, comfort, and safety. Watch our video to learn more about the solutions and services we provide to the aerospace industry.
RoyalAero® Key Characteristics
- High tensile strength and stiffness for superior impact resistance
- Excellent formability, hot tear strength, ductility, and ability to maintain uniform wall thickness
- Resists staining, fading, cracking, and crazing caused by harsh cleaners
- Meets heat deflection temperature requirements
- Available in 0.028" — 0.375" thickness
- Recyclable (can be designed with up to 100% recycled content
- Available in standard and custom colors, thickness, and sizes. Standard and custom colors are only available on the top "A" side of the extruded sheet. (Substrate would be made of a range of recycled colors: black, white, beige, or gray.)
RoyalAero® Thermoplastic Sheet
| Product | Material | Description/Applications | Specifications |
|---|---|---|---|
| R12 | ABS | High temperature Applications: Interior thermoformed parts for military aircraft and helicopters where a high HDT is required. |
All-purpose thermoforming grade |
| R20 | ABS | High impact, low temperature Applications: Interior thermoforming parts for military aircraft and helicopters where cold temperature high impact is required. |
Notched Izod Impact (ft-lb/in) at 70 F = 8.0 at 30F = 5.0 |
| R52 | PVC/Acrylic | Fire-rated PVC/Acrylic rigid sheet | |
| R57 | PVC/ABS | Fire-rated PVC/ABS rigid sheet | |
| R503 | TPR | Fire-rated TPR flexible sheet | |
| R60 | PVC/Acrylic | Fire-rated PVC/Acrylic rigid sheet | |
| R105 | PVC/Acrylic | Soft vinyl foam laminated to PVC/Acrylic | |
| R552 | PVC/Acrylic | 100% Recycled option fire-rated PCC/Acrylic | |
| R557 | PVC/ABS | 100% Recycled option for fire-rated PVC/ABS | |

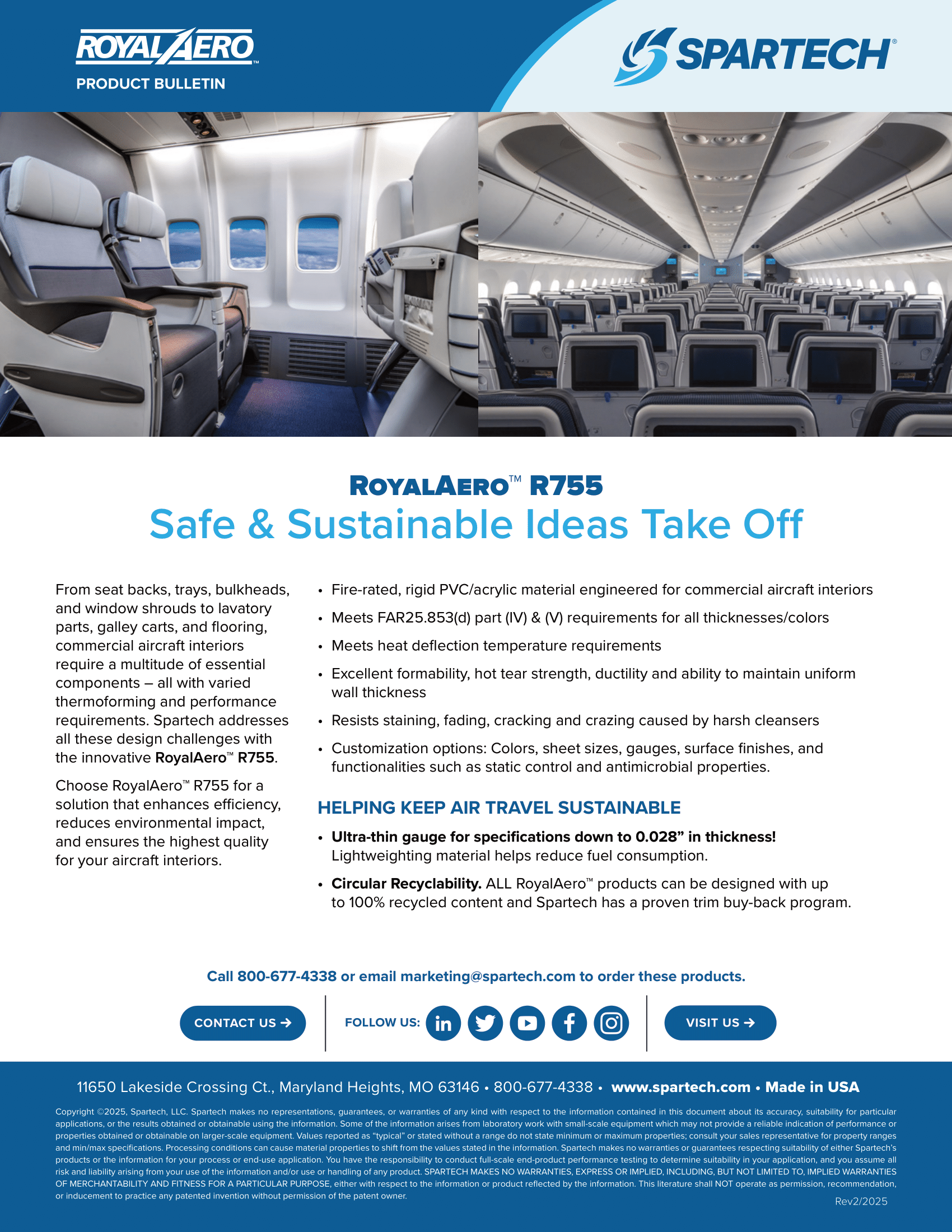

| R755 | PVC/Acrylic | Fire-rated PVC/Acrylic rigid sheet |

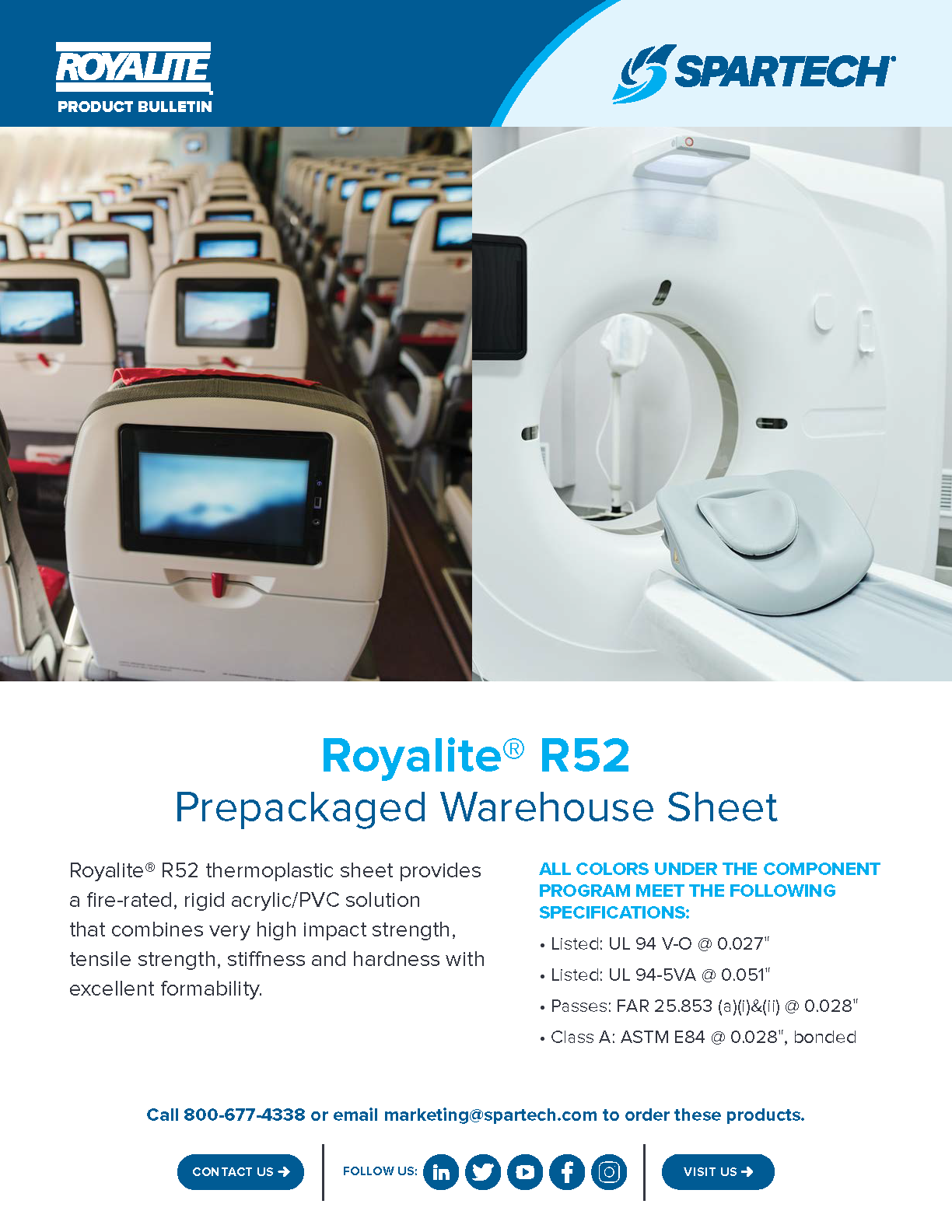

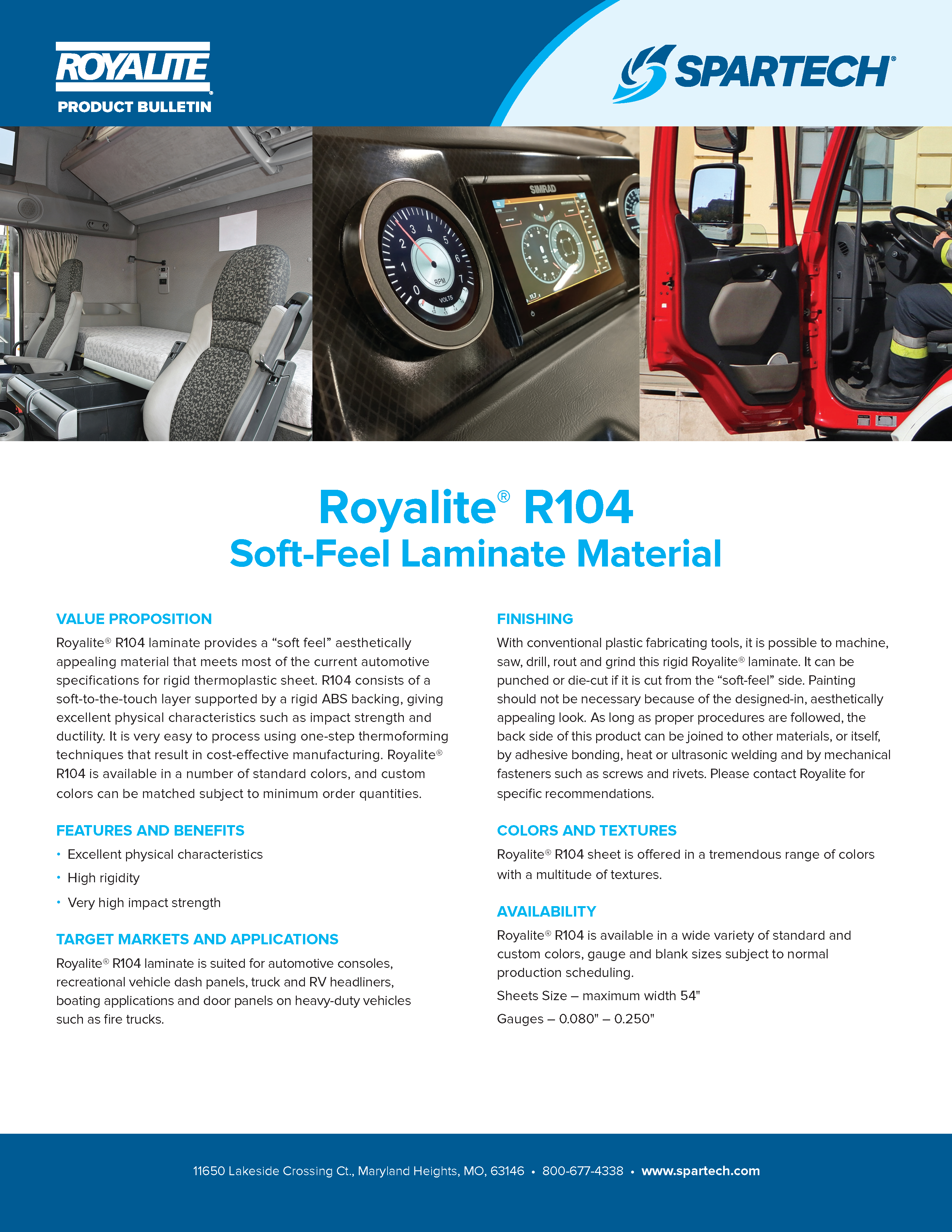

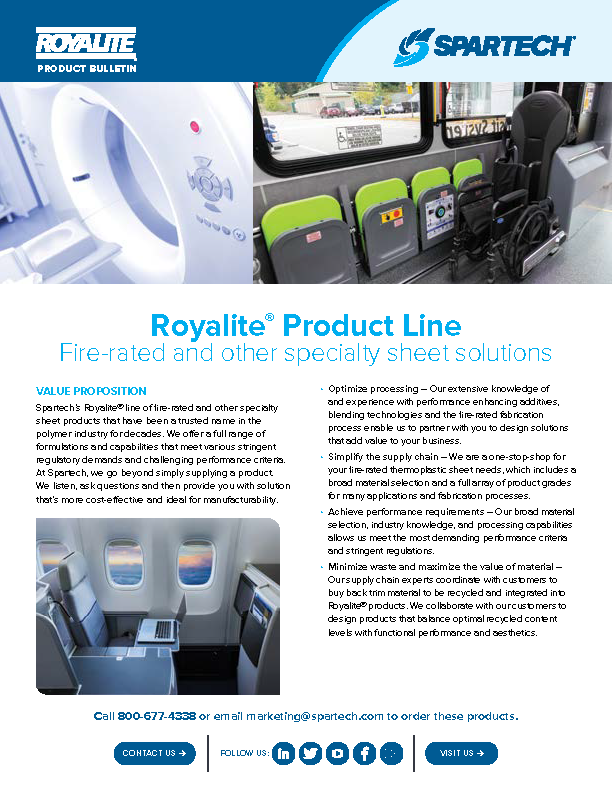

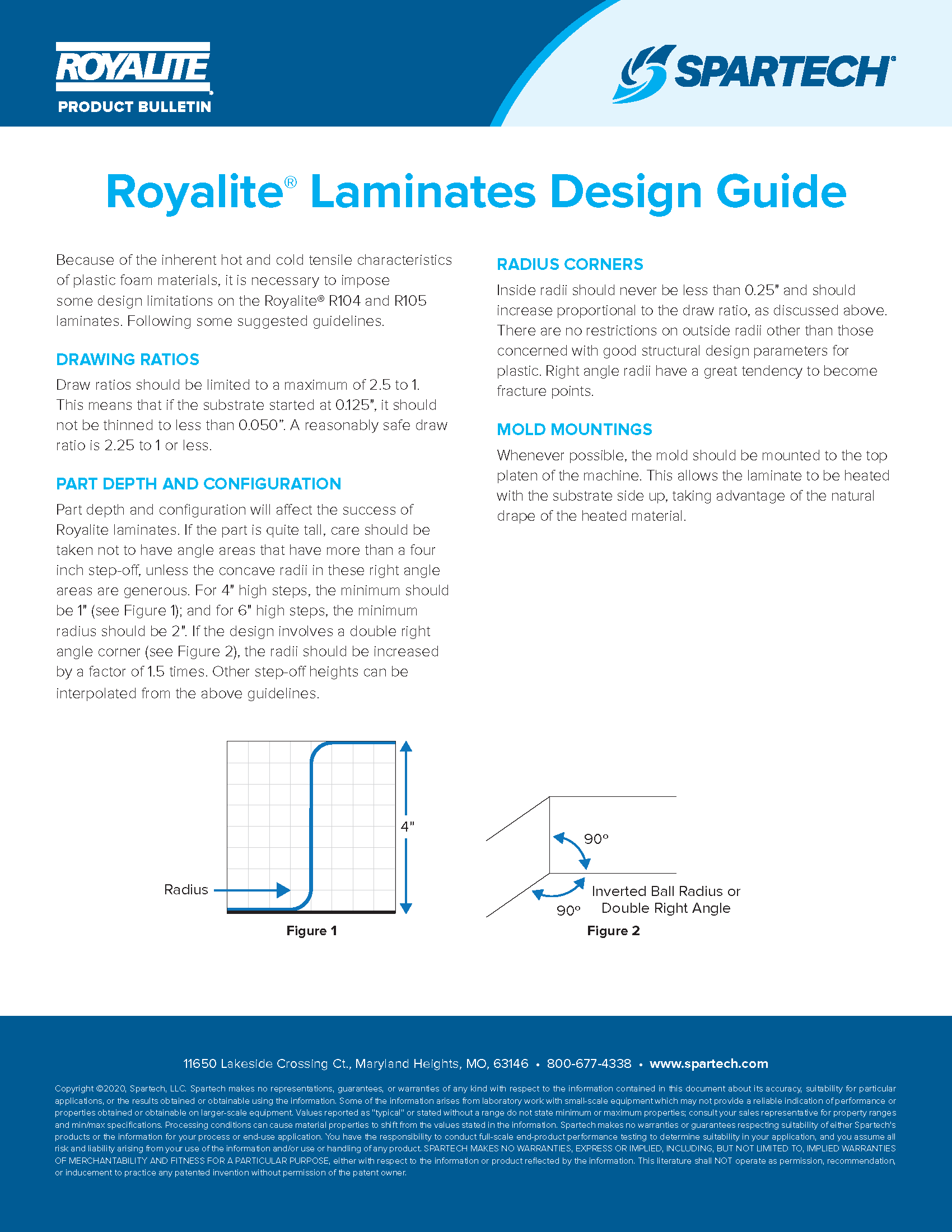

Related Documents

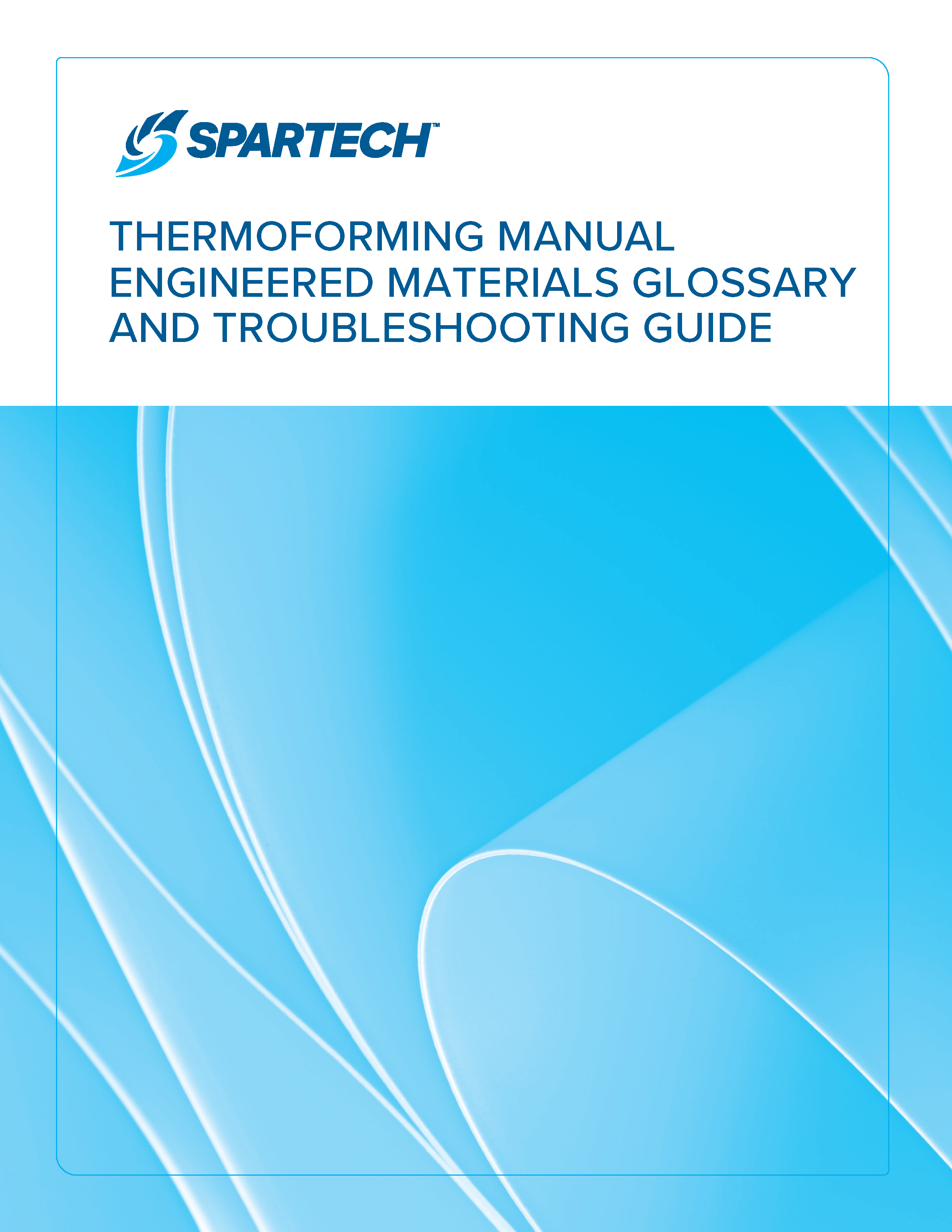

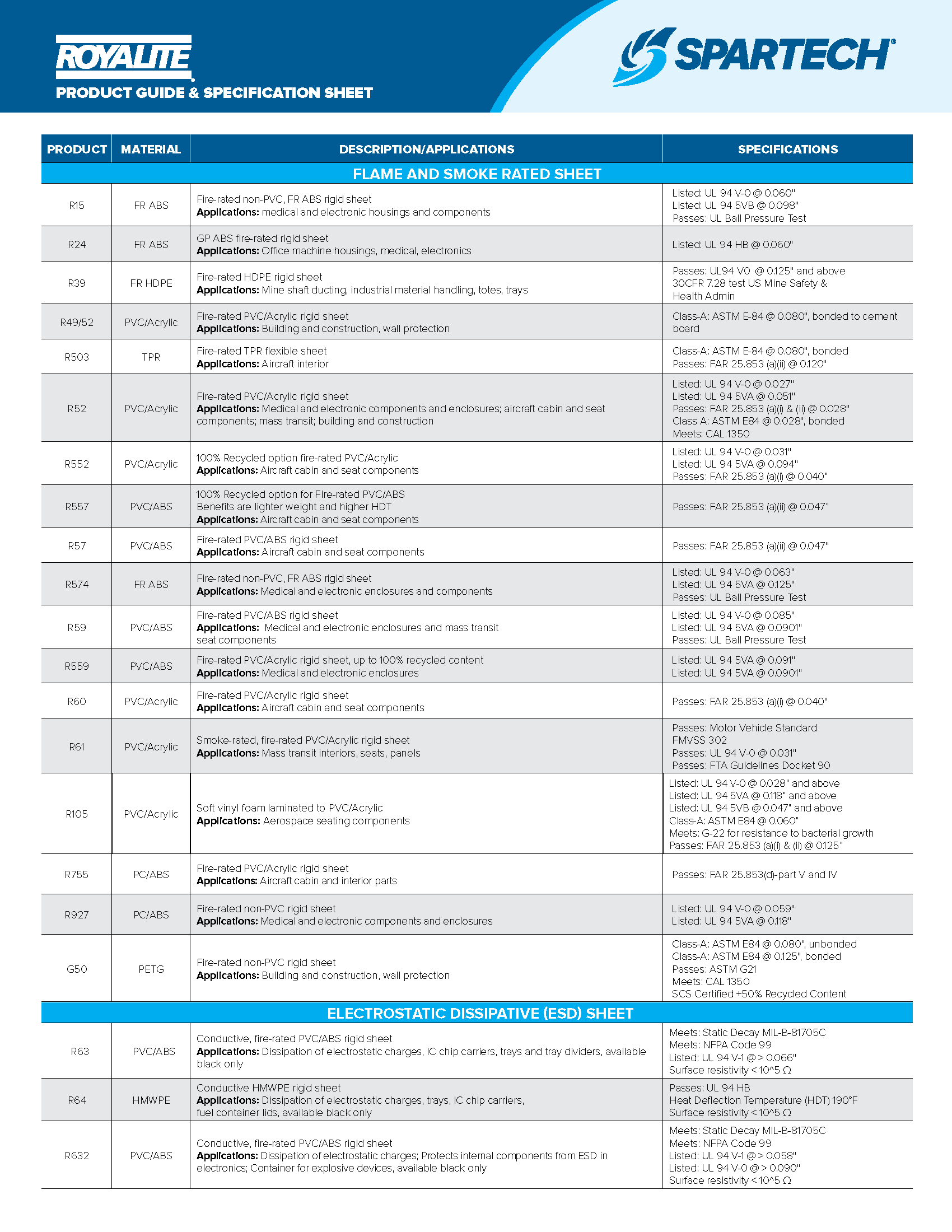

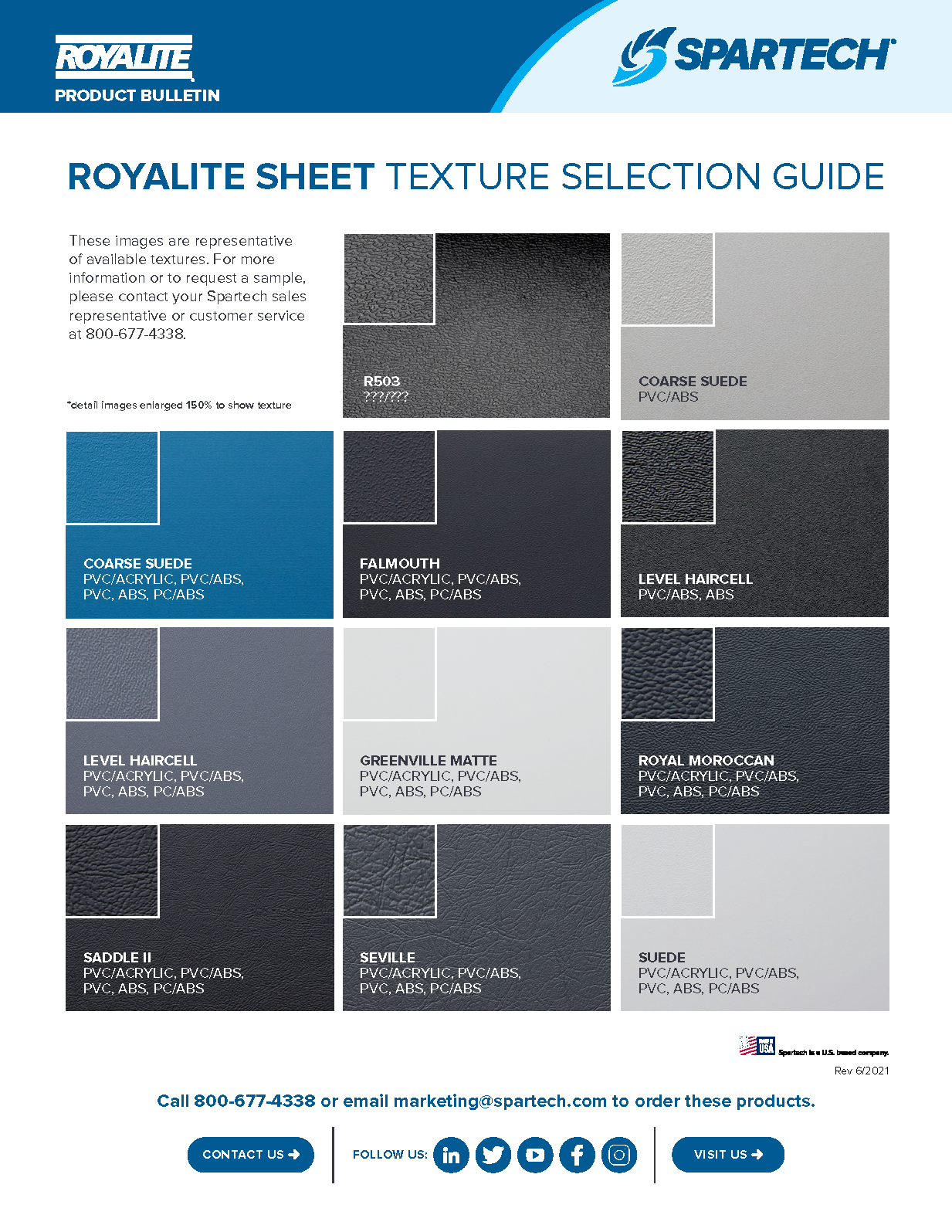

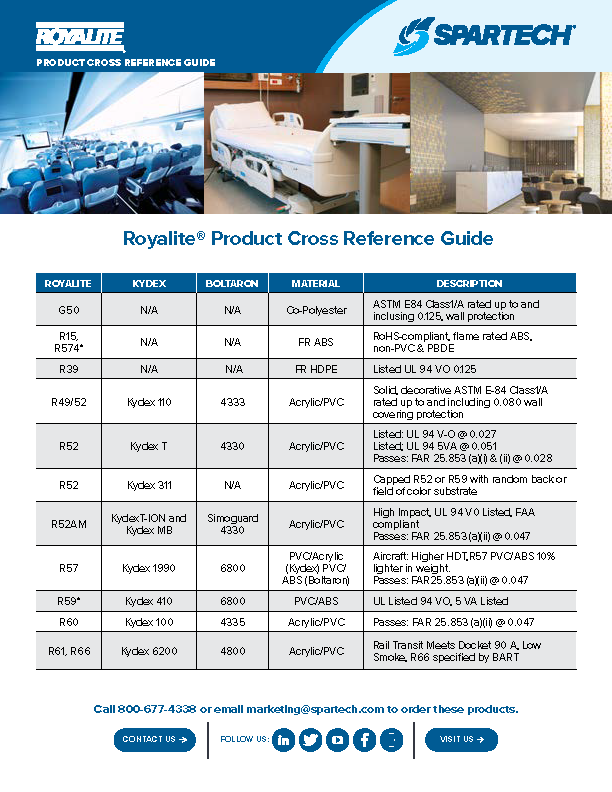

For a more extensive view of our entire collection of Product Documentation, Technical Data Sheets (TDS), and Article Information Sheets (AIS), please visit our Document Library.
Polycast® Cell Cast Acrylic
Delivering aircraft transparencies for the demanding aerospace industry.
Polycast® cell cast acrylic has been manufactured and trusted by the aerospace industry for over 50 years. We offers different formulations designed to address the specific performance needs of various aircraft transparencies. That includes optical clarity and sheet cleanliness, unrivaled in the industry.
We consistently surpass stringent industry standards and demands, including the strict quality levels required by Military Material Specifications. Today, in supplying the Polycast® brand of materials, we are the principal supplier to the United States aerospace industry of acrylic sheet meeting U.S. Military Material Specifications MIL-PRF-5425, MIL-PRF-8184, and MIL-PRF-25690.
Excellence in Aerospace
We’ve manufactured the highest quality engineered materials for commercial airliners, military jets, and helicopters for over three decades. Our Royalite® and Polycast® product lines protect passengers’ and crew’s health, comfort, and safety. Watch our video to learn more about the solutions and services we provide to the aerospace industry.

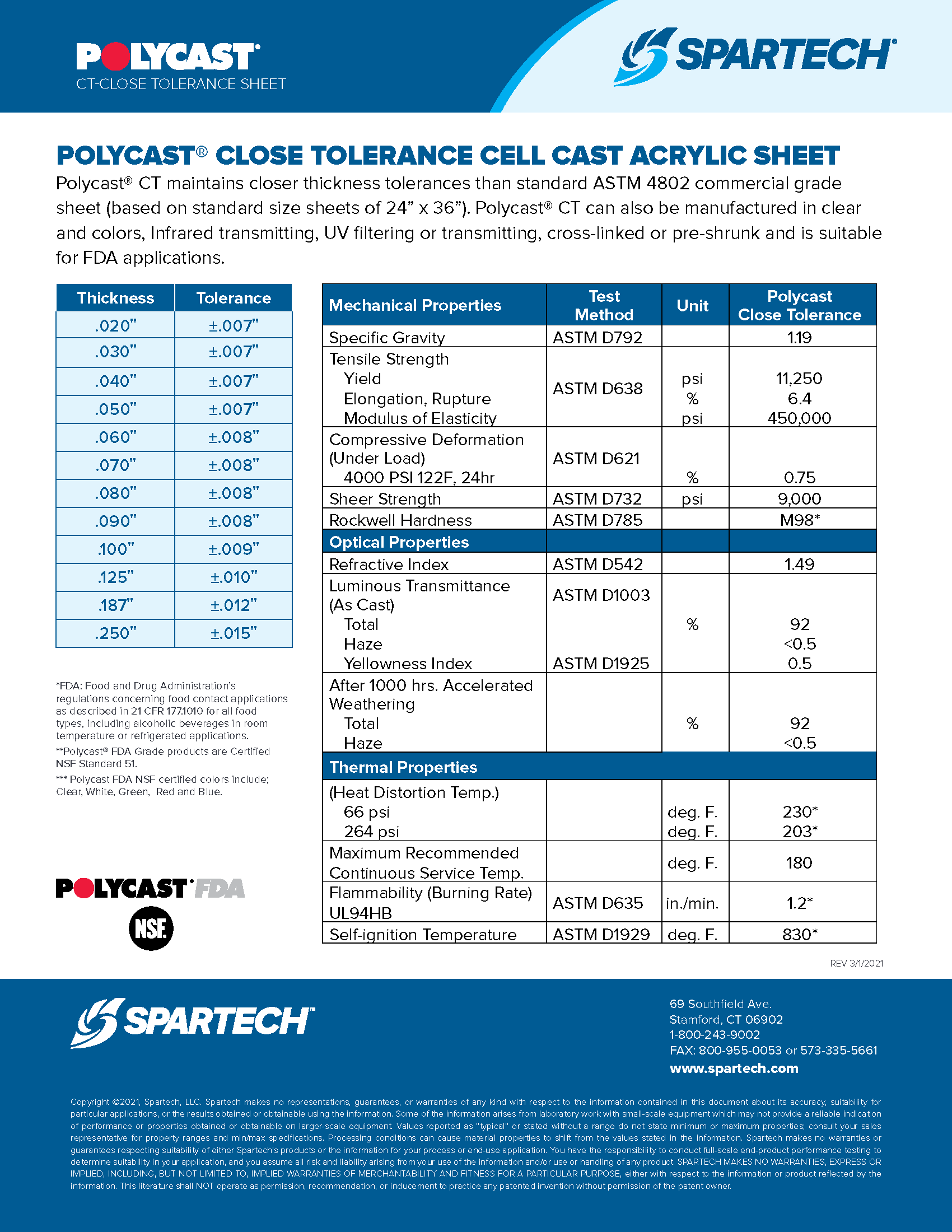

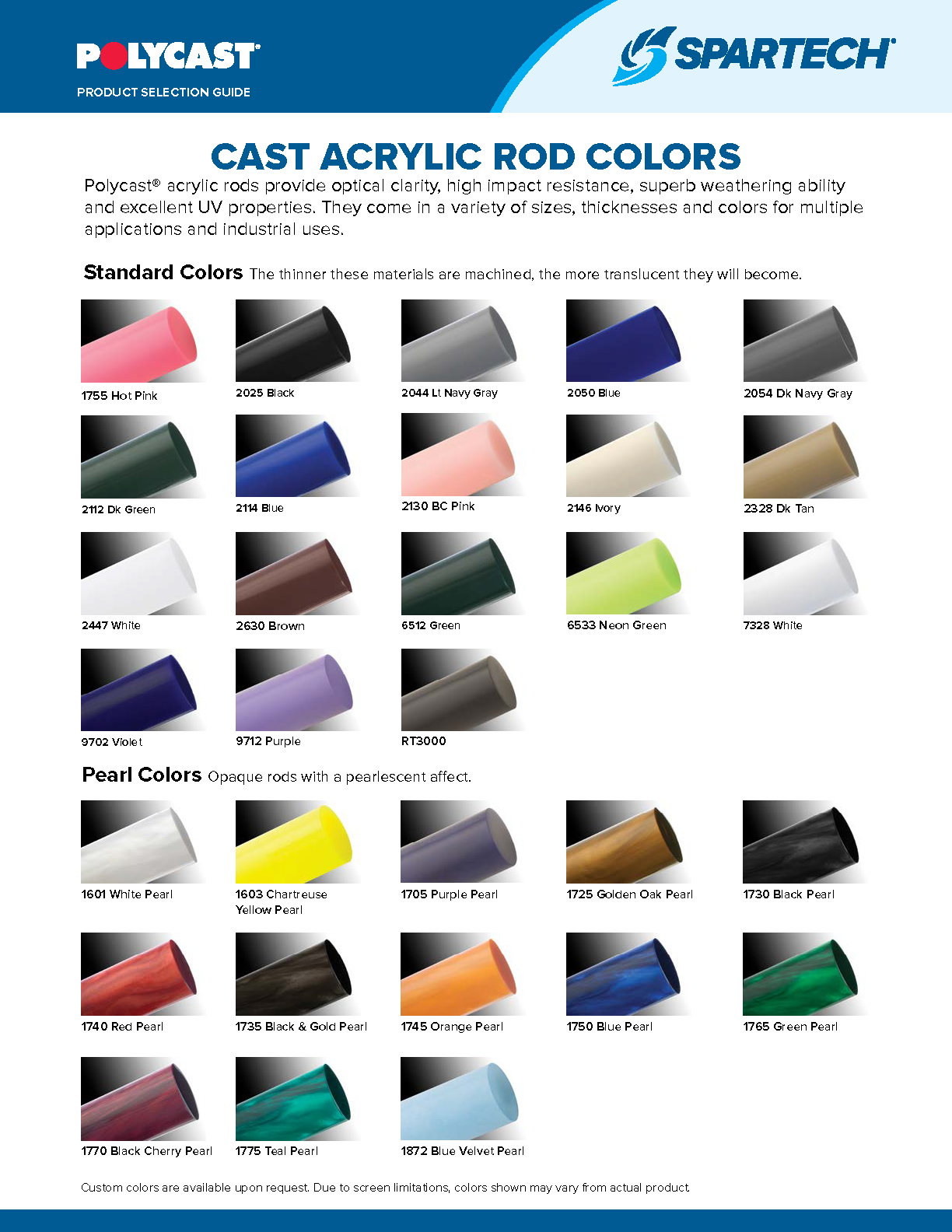

Related Documents

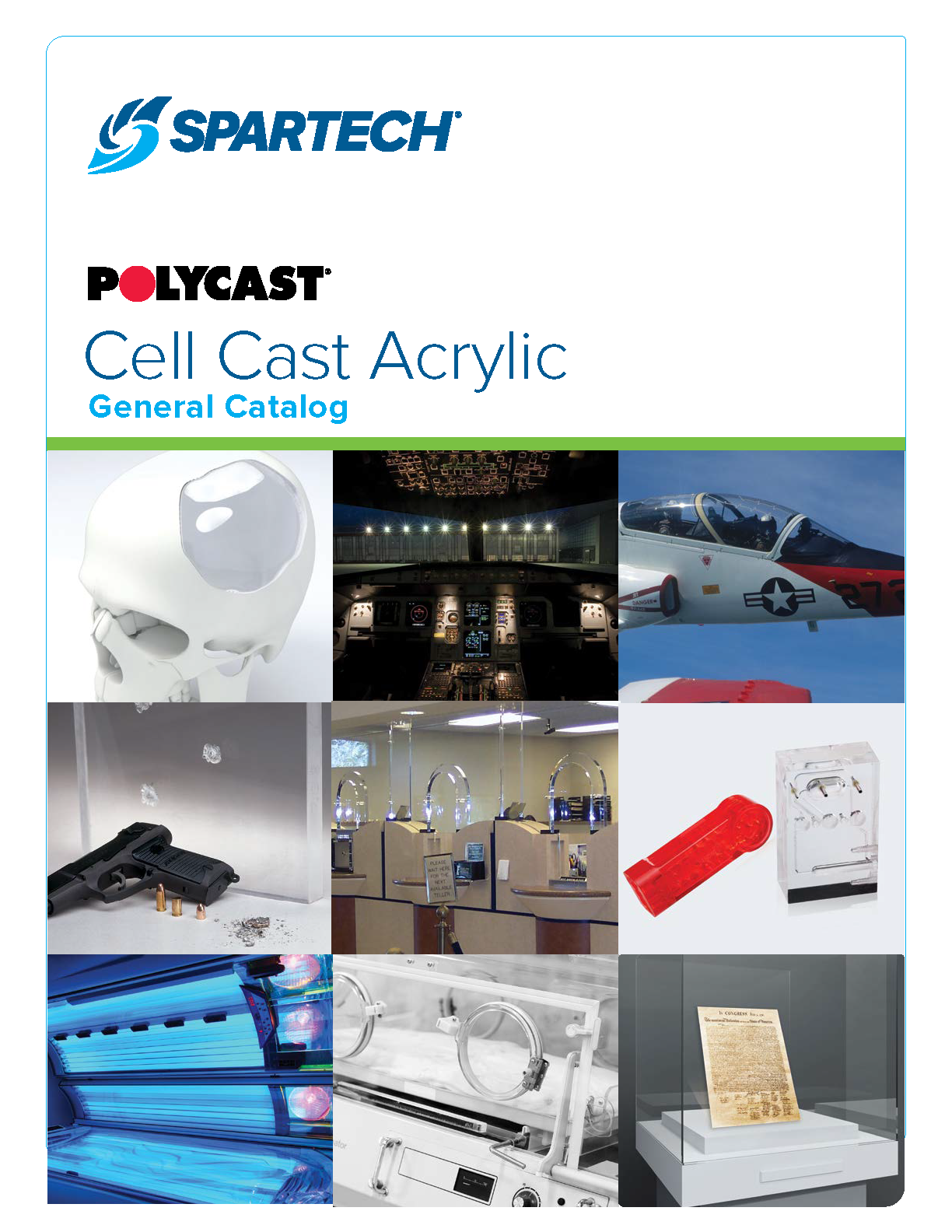

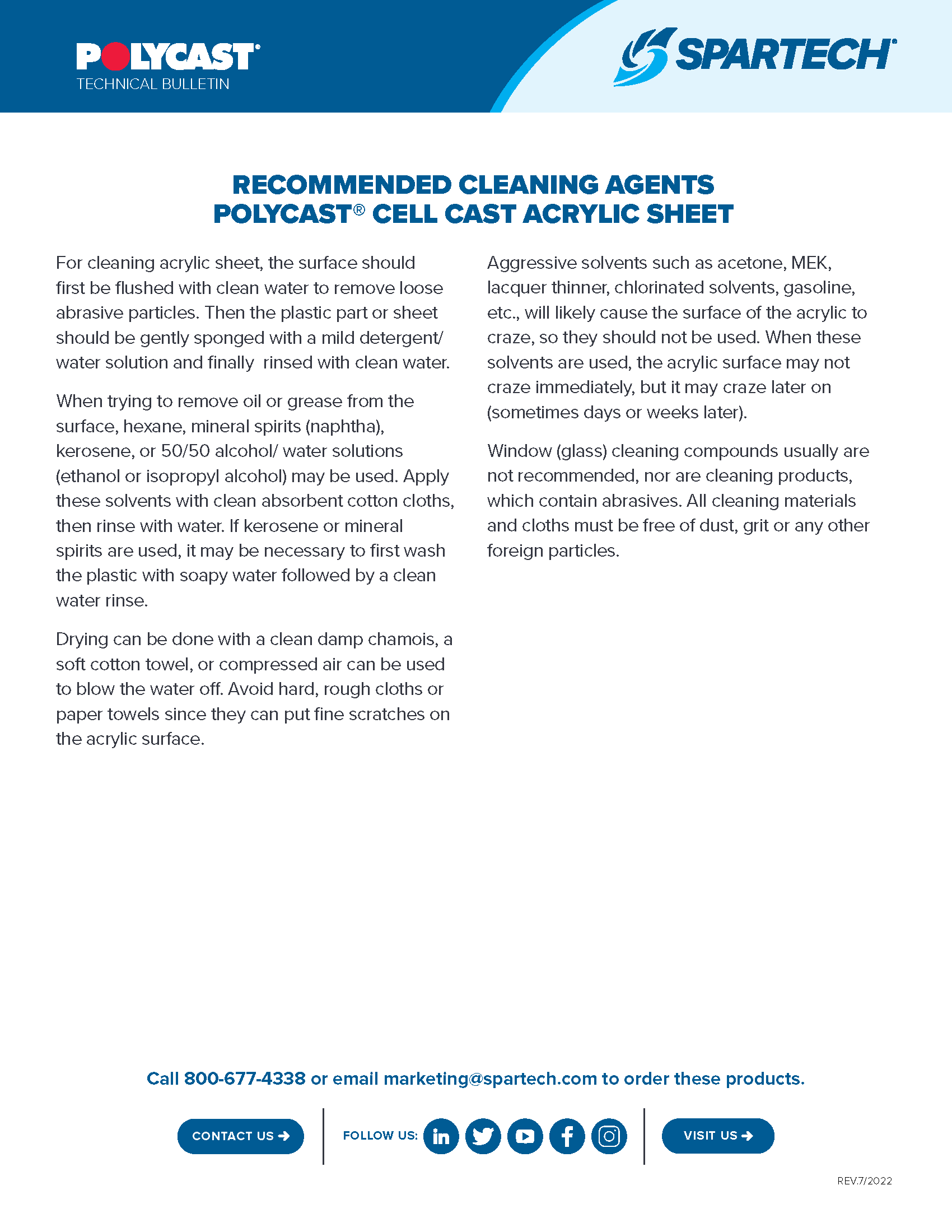

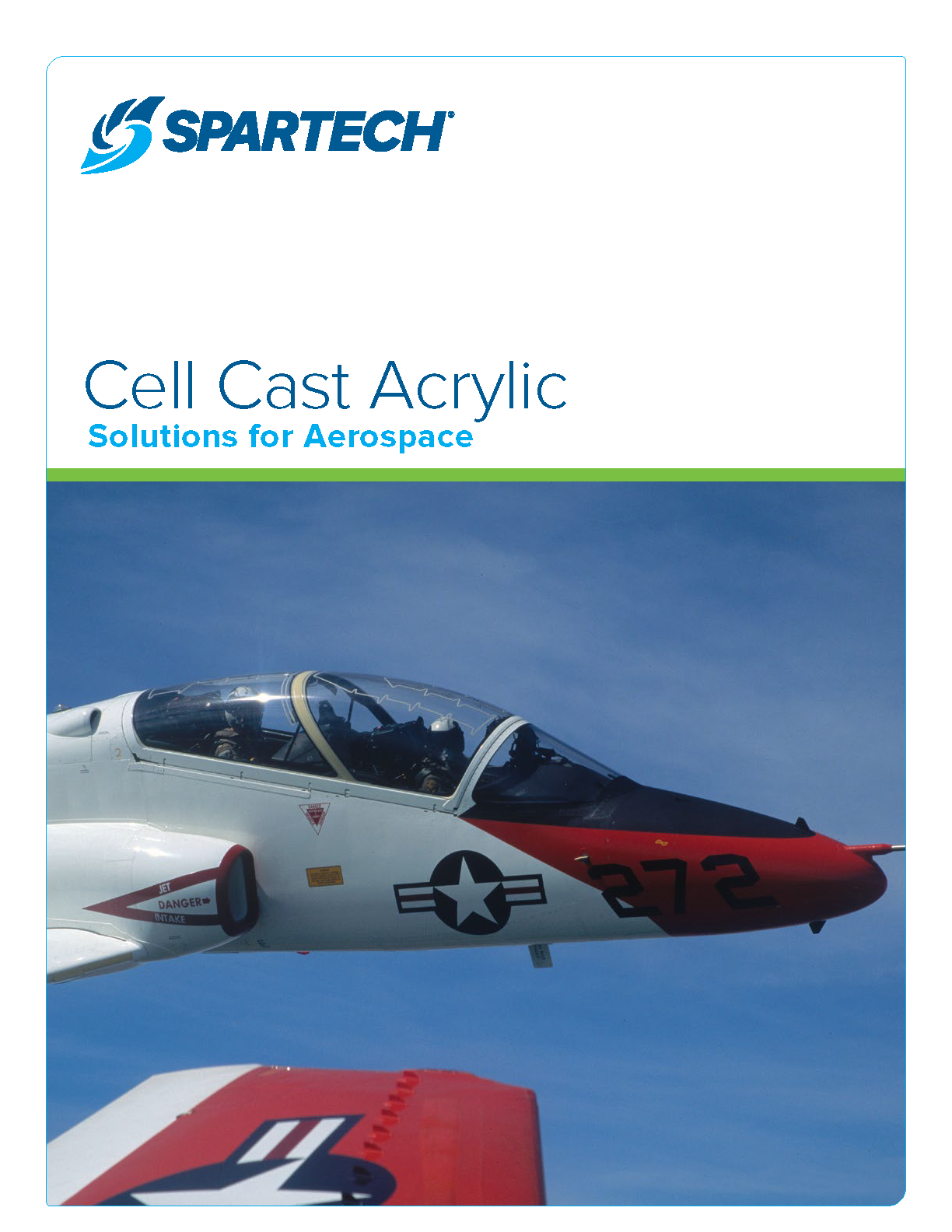

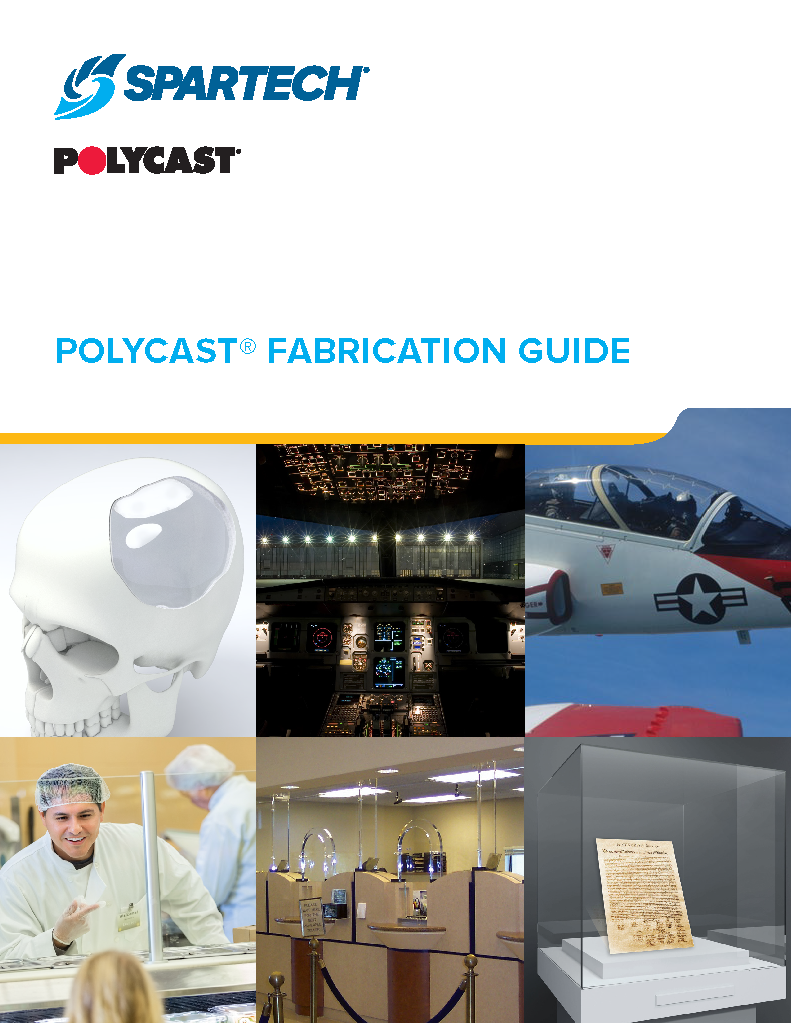

For a more extensive view of our entire collection of Product Documentation, Technical Data Sheets (TDS), and Article Information Sheets (AIS), please visit our Document Library.
